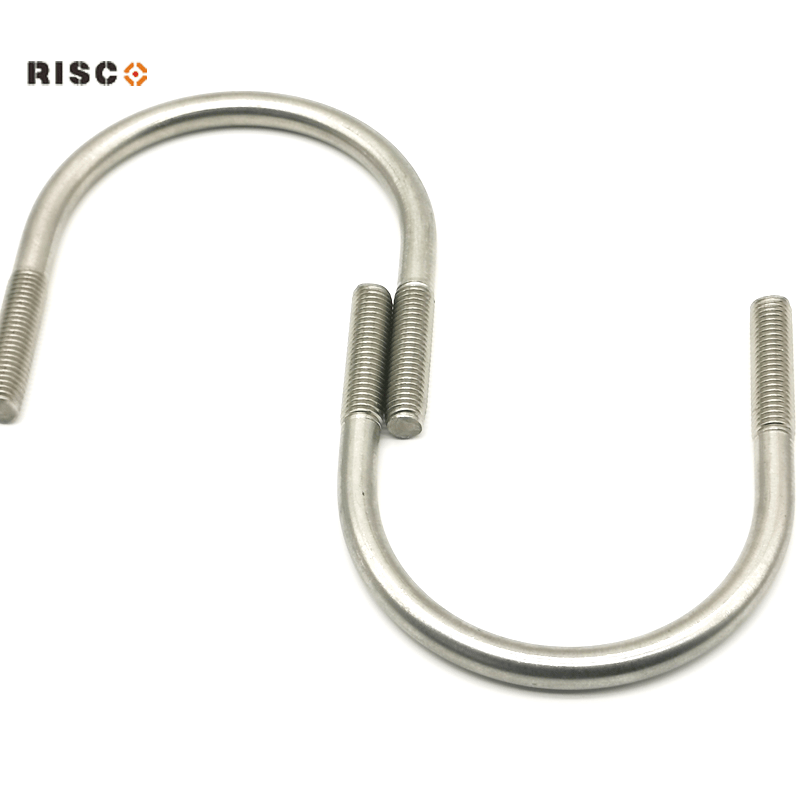

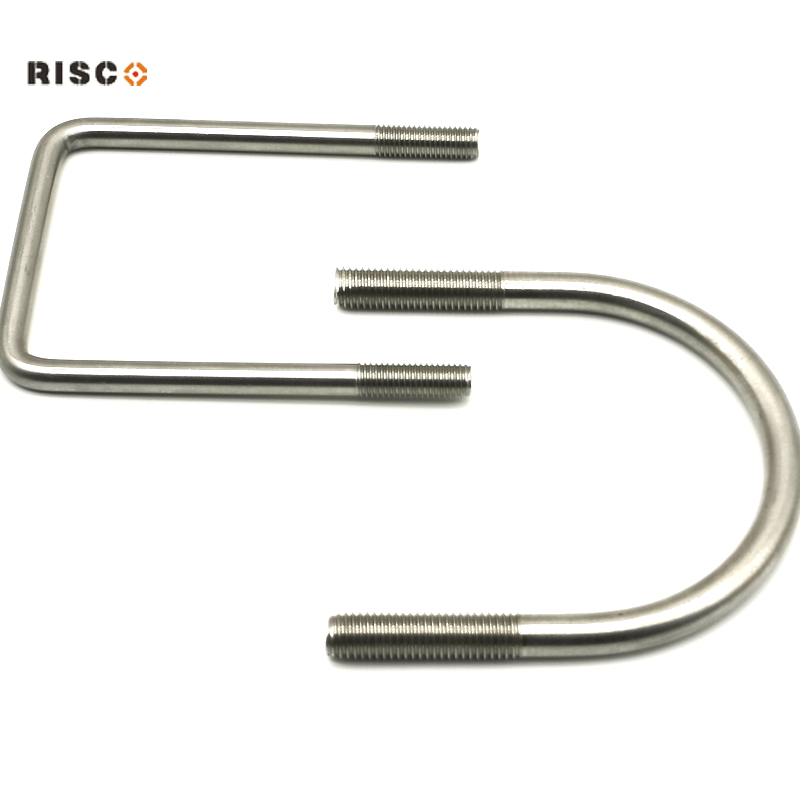

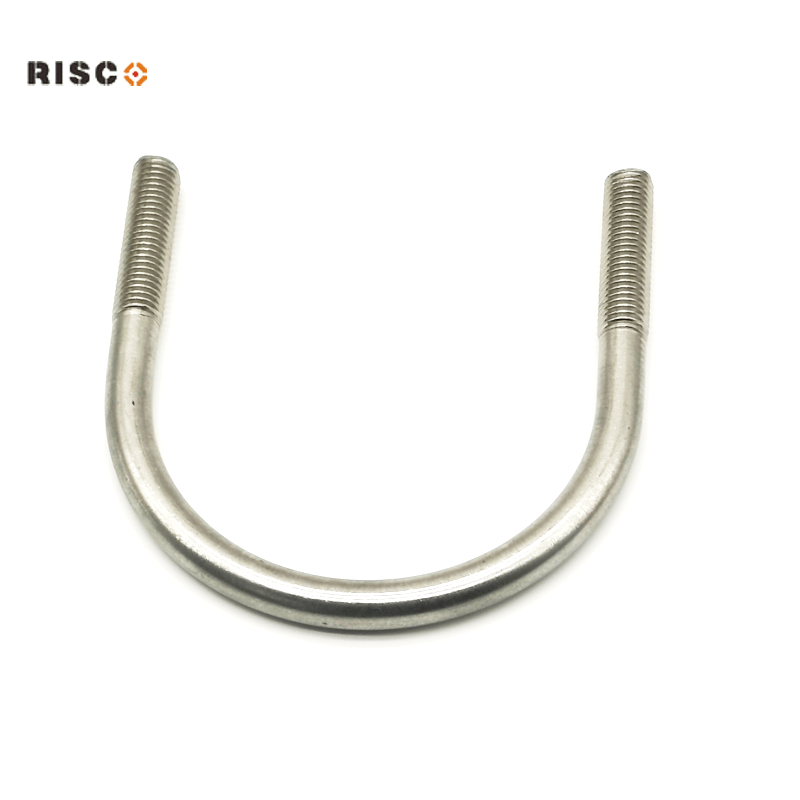

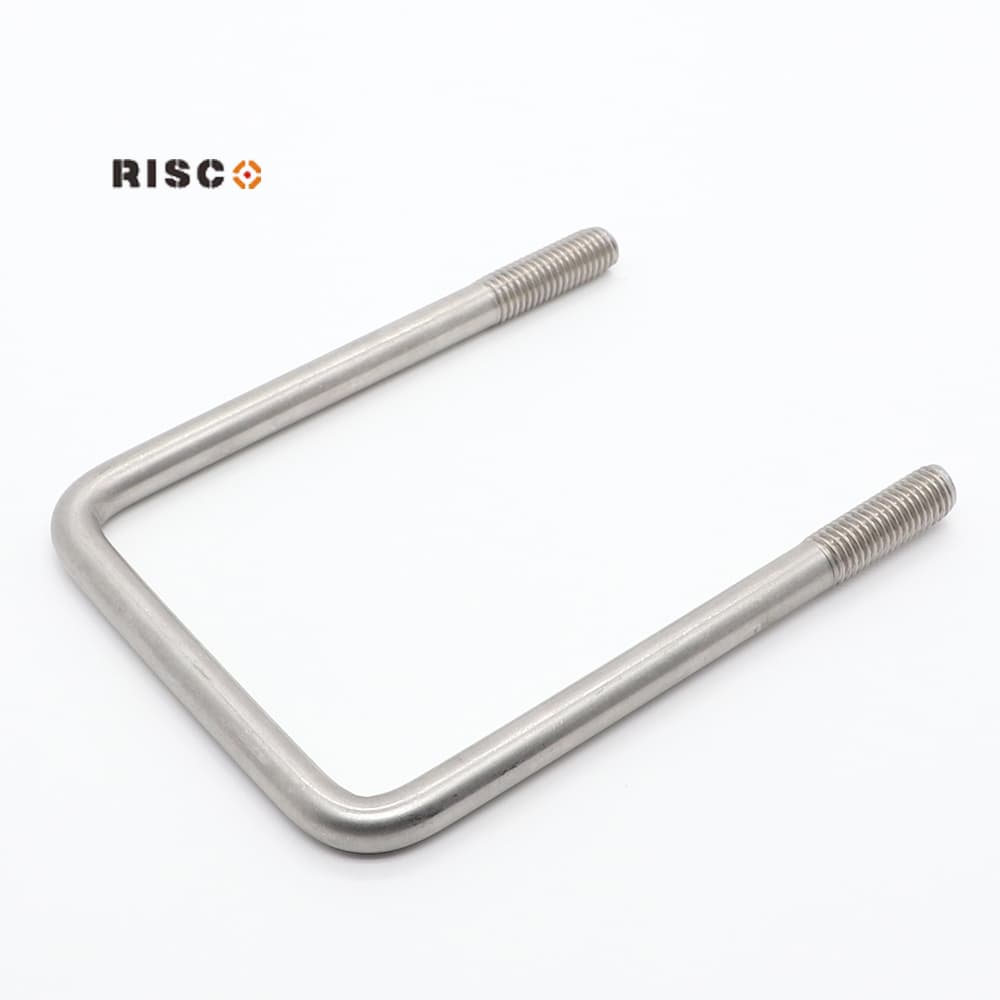

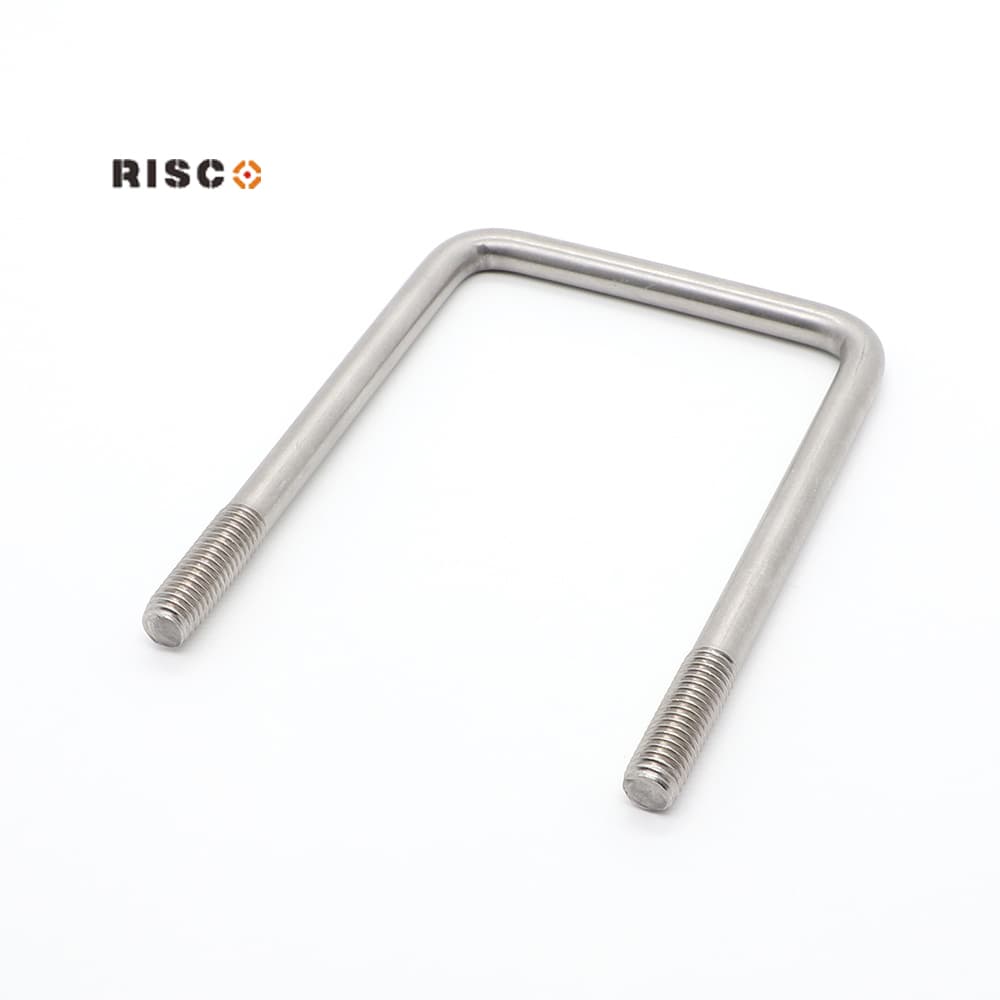

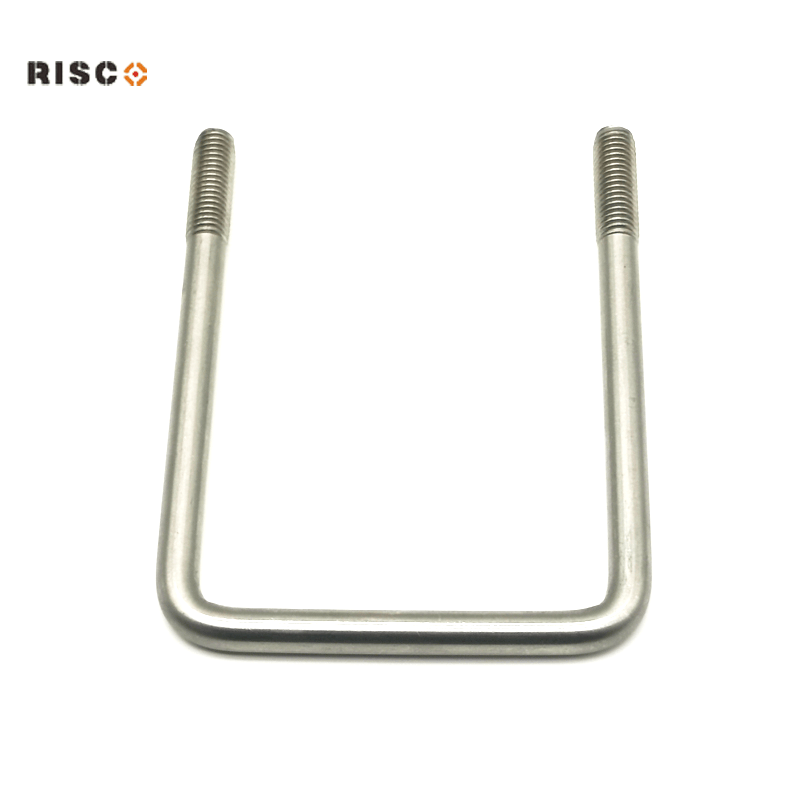

U BOLT:
Name: U Bolt
Standard: DIN 3570/ISO 898-1/ASME B18.31.5
Material: 304/316/304L/316L/904L/31803/32750/32760/C-276/Monel-400/660A....
Diameter: M6-M30、1/8”-4”
Length: 16MM-1000MM
Description:
U bolt, also known as the horse-hoof bolt, is called such because of its U-shaped design. It is a non-standard component with threads at both ends that can be combined with nuts, and is mainly used for fixing cylindrical objects such as water pipes or flat objects such as the leaf springs of cars.

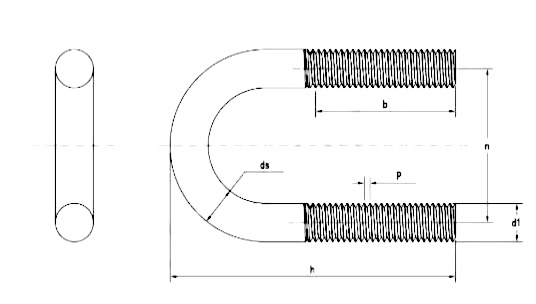

Drawing:
