CARRIAGE BOLT:

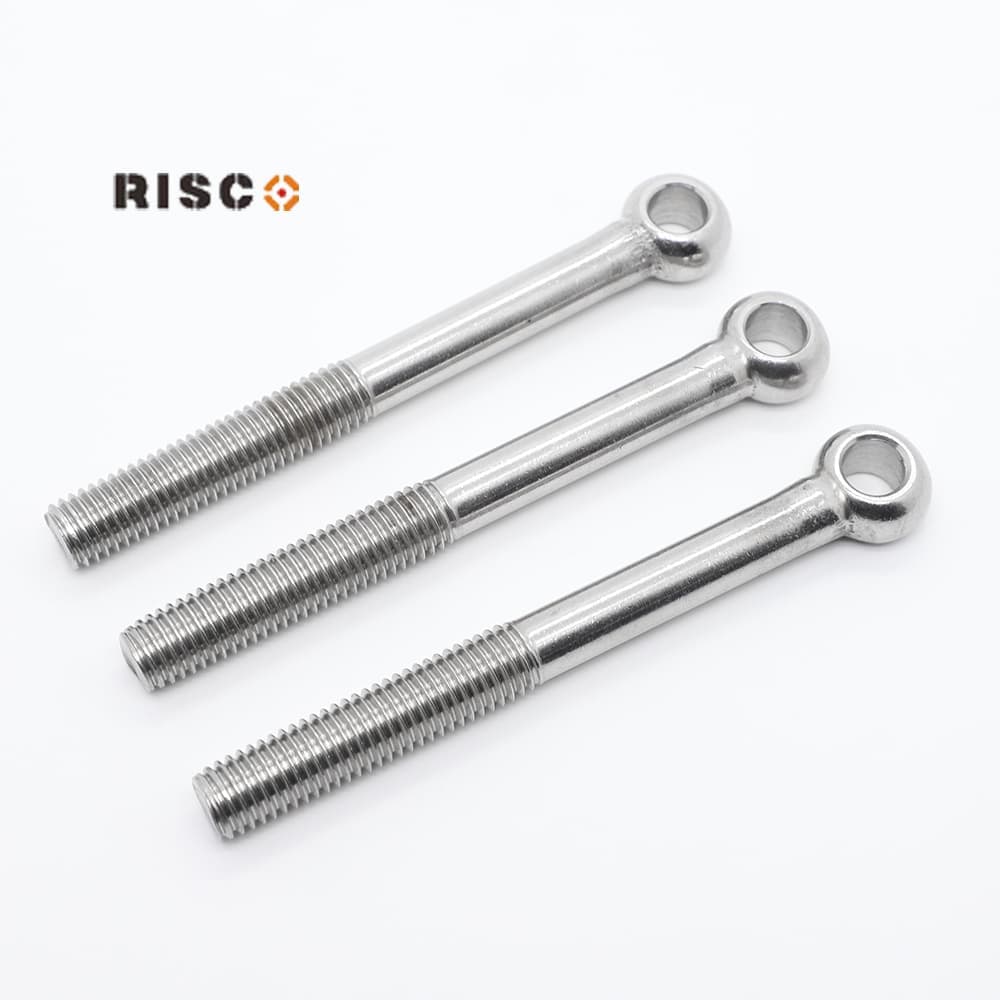

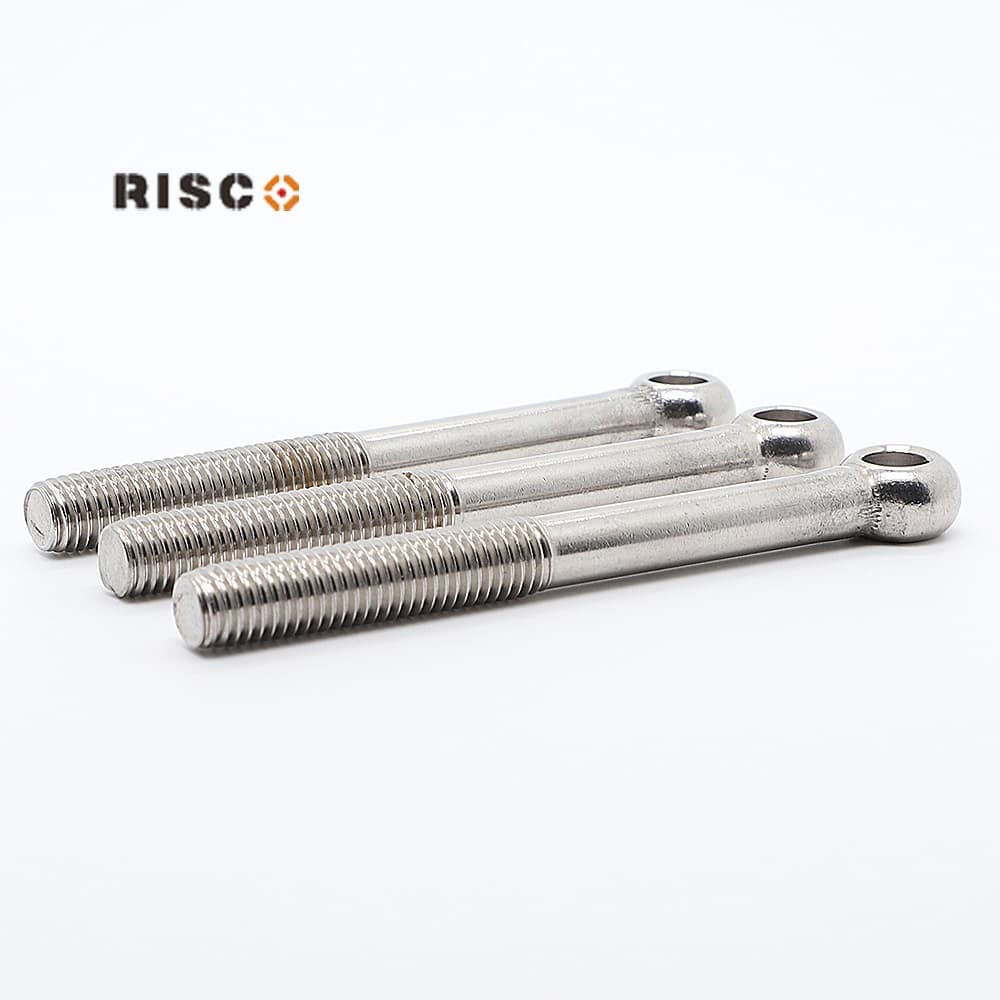

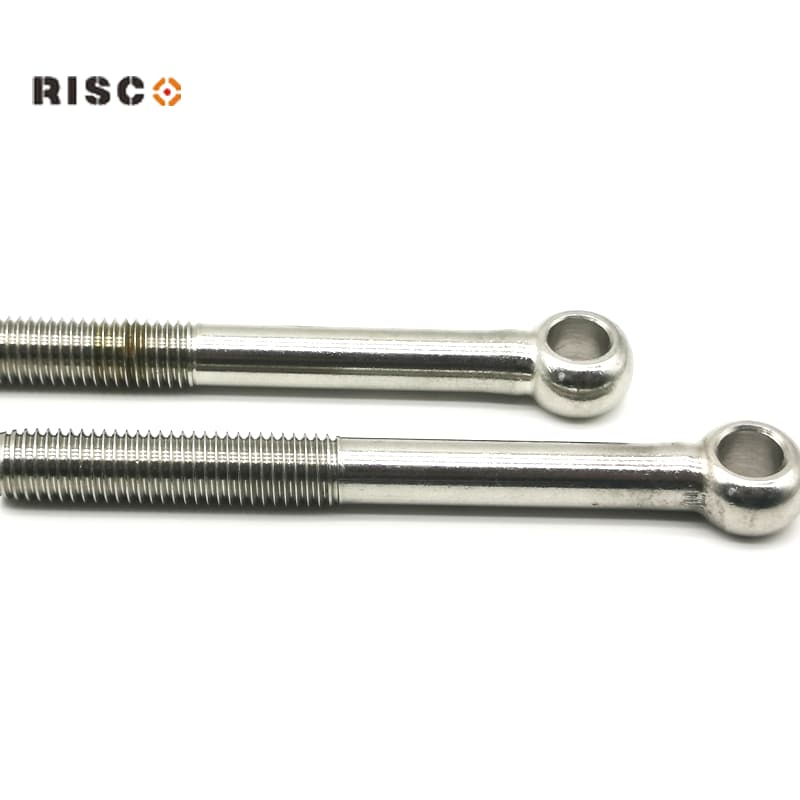

Name: Eye Bolt
Standard: DIN 444/JIS B2801/GB 798
Material: 304/316/304L/316L/904L/31803/32750/32760/C-276/Monel-400/660A....
Diameter: M5-M39
Length: 16MM-1000MM
Description:
The eye bolt is a special-purpose mechanical connection fastener. Its main structure consists of a ring-shaped fixing ring, a threaded connecting column, and a fixing plate. The structure is enhanced by using reinforcing blocks and fastening components to improve the structural strength and anti-loosening performance. Its hinge-type design allows the components to maintain a certain degree of rotational mobility after being fixed, and it is widely used in mechanical manufacturing, equipment maintenance, automotive manufacturing, and home appliance maintenance fields.

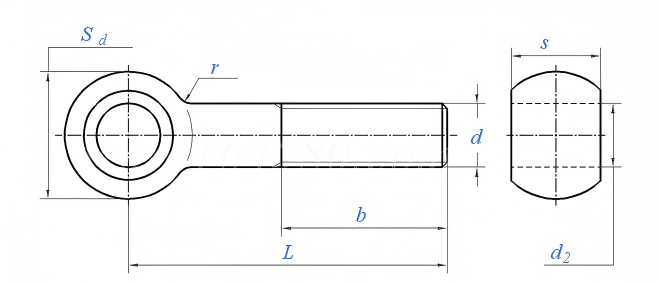

Drawing:
