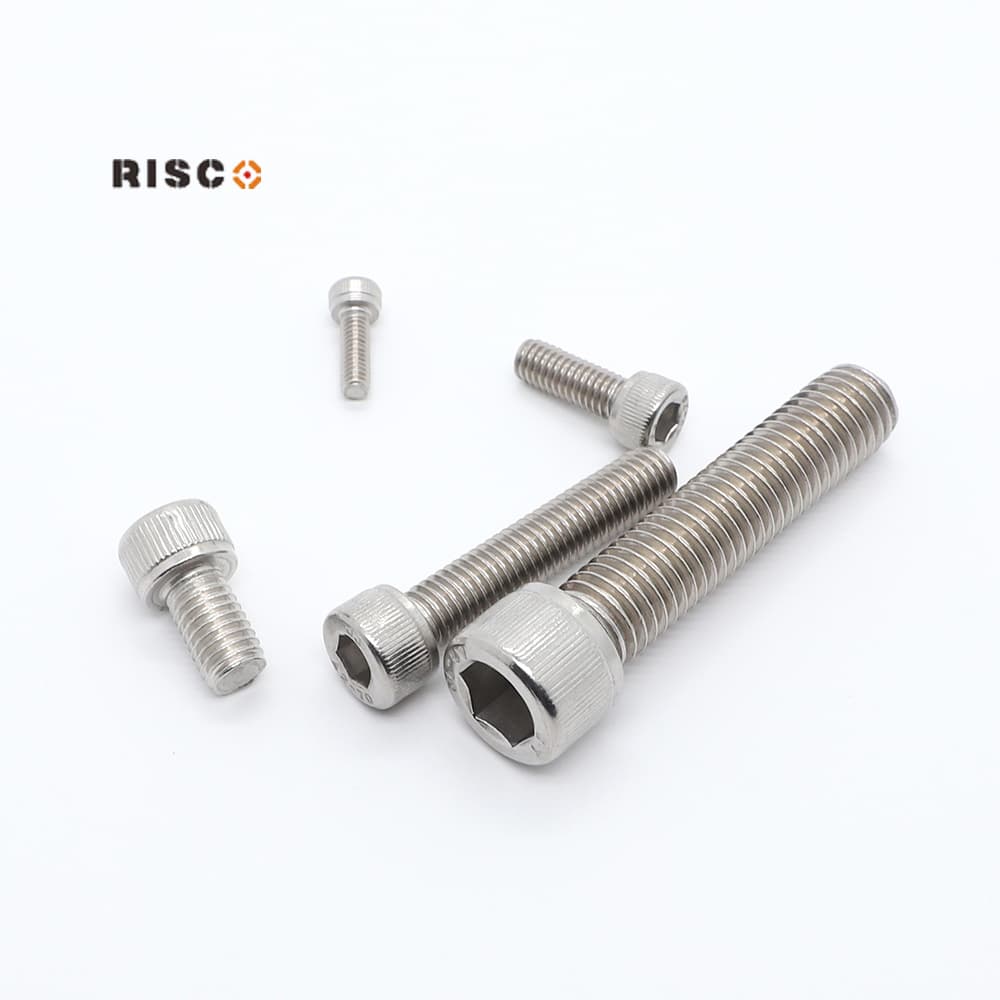

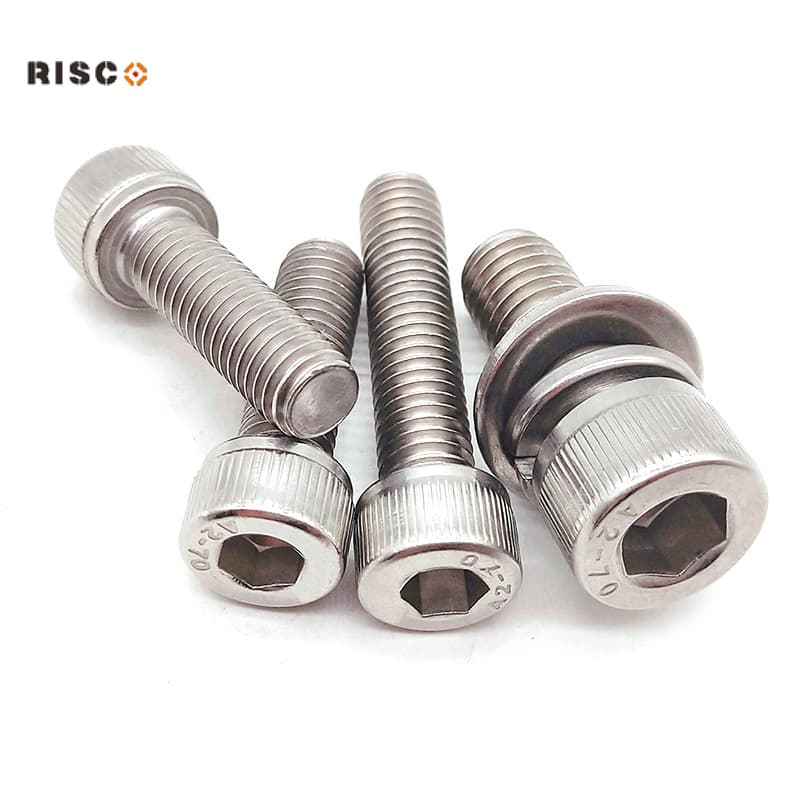

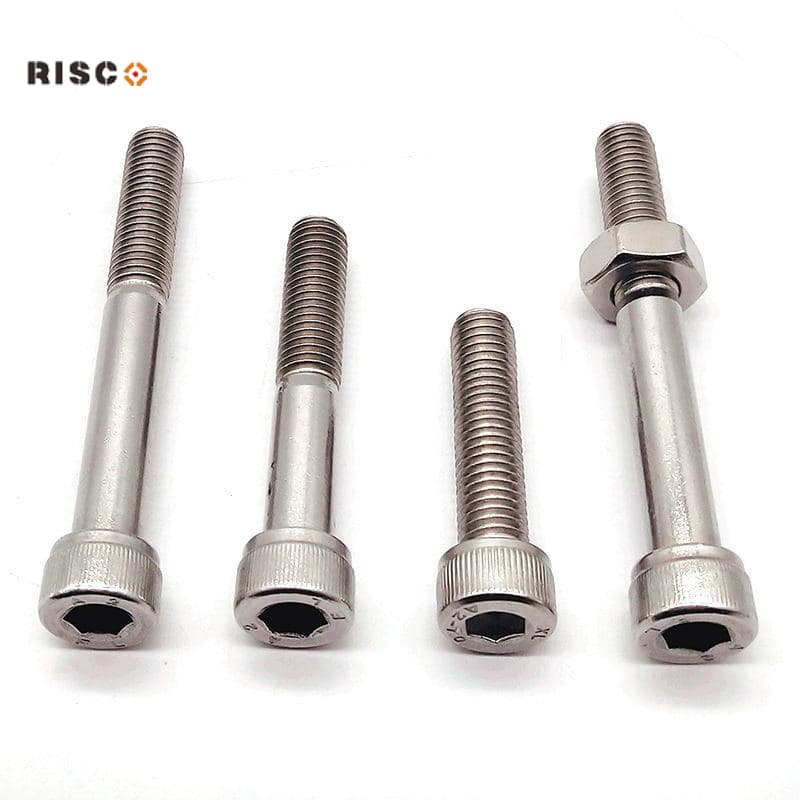

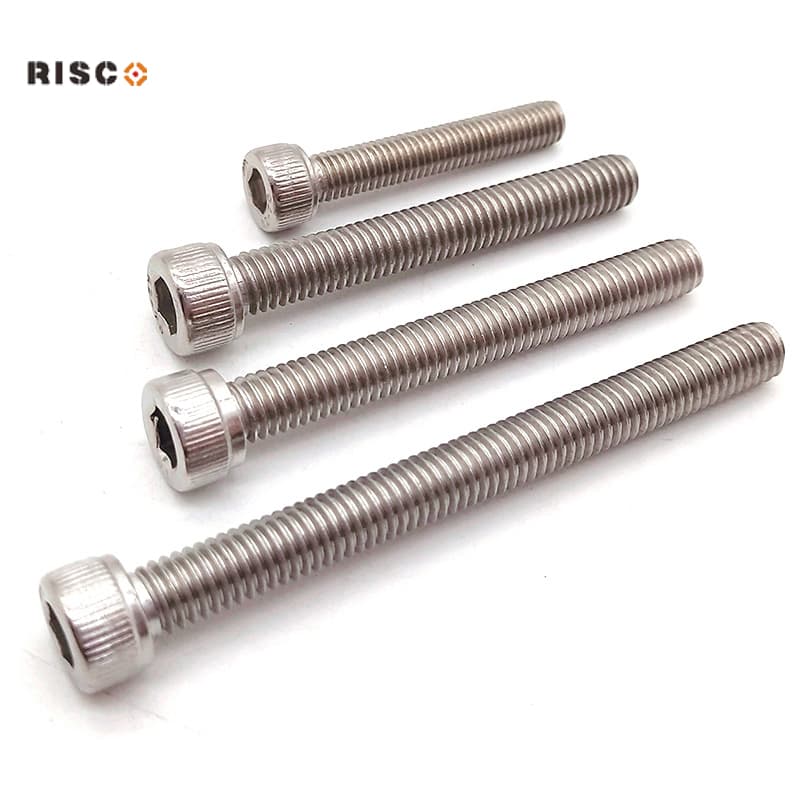

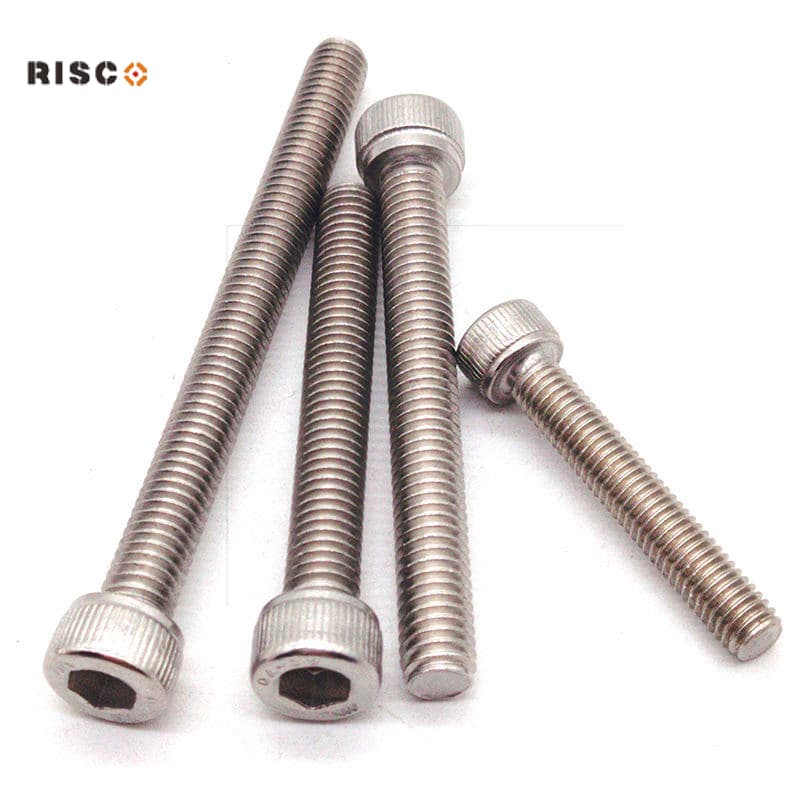

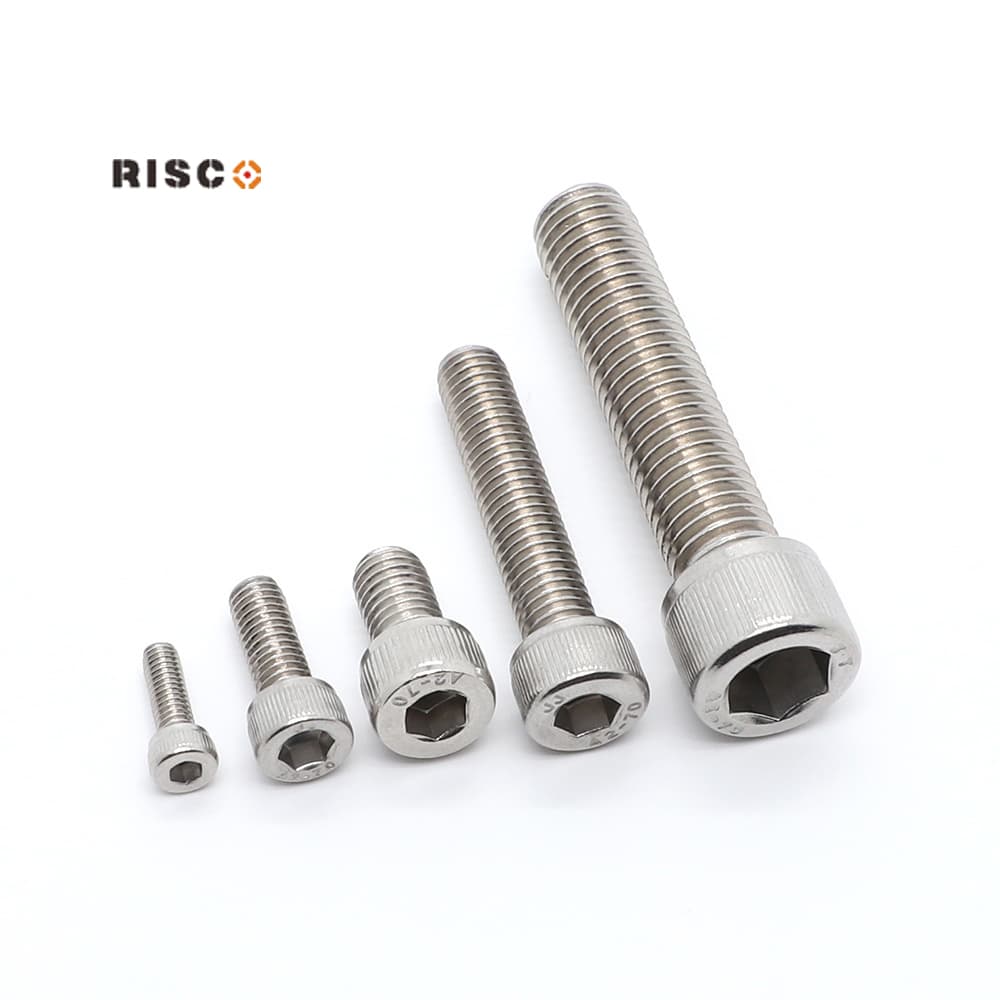

HEX SOCKET HEAD CAP BOLT:
Name: Hex Socket Head Cap Bolt
Standard: ISO 4762/DIN 912/JIS B1176/GB 70.1
Material: 304/316/304L/316L/904L/31803/32750/32760/C-276/Monel-400/660A....
Diameter: M1.6-M64
Length: 3MM-1000MM
Description:
The hex socket head cap bolt consists of two parts: the head and the shank. The head is cylindrical and has a hexagonal groove inside. It requires an internal hexagonal wrench for installation and disassembly. It is one of the most commonly used fasteners in mechanical manufacturing. Due to its compact structure, strong load-bearing capacity, and convenient installation, it is widely used in fields such as molds, mechanical equipment, and automated production lines.

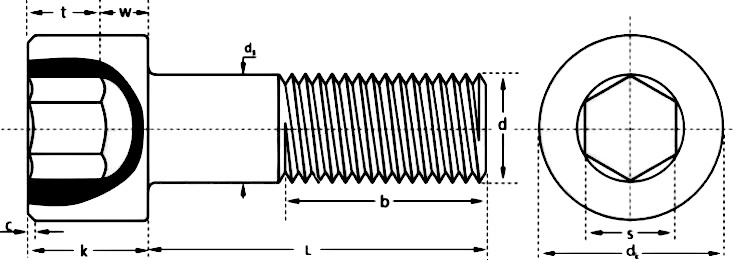

Drawing:
