FLAT HEAD BOLT:
Name: Flat Head Bolt
Standard: None Standard
Material: 304/316/304L/316L/904L/31803/32750/32760/C-276/Monel-400/660A....
Diameter: M6-M30
Length: 16MM-1000MM
Description:

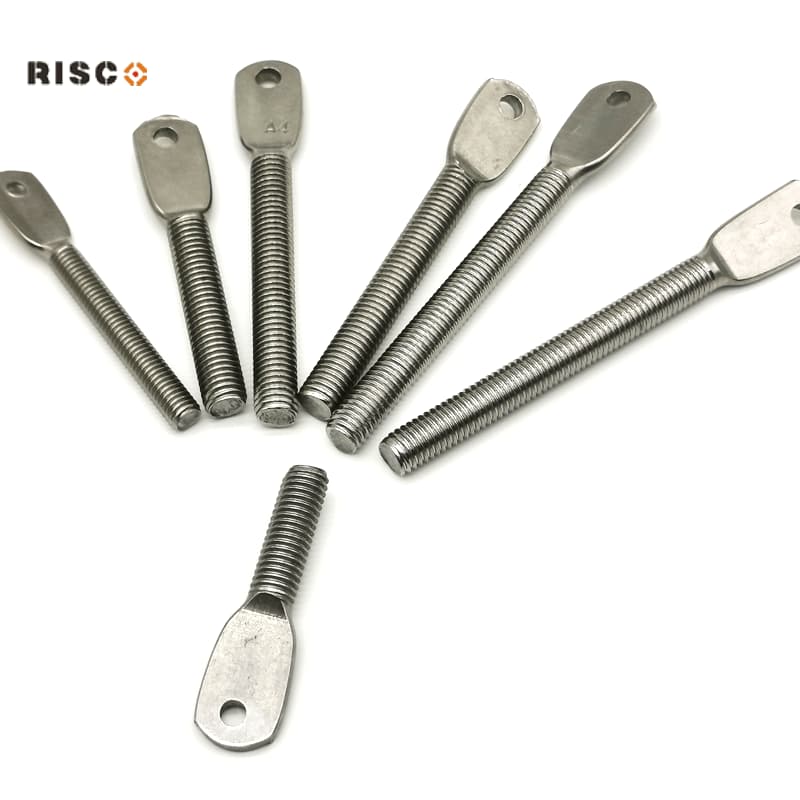

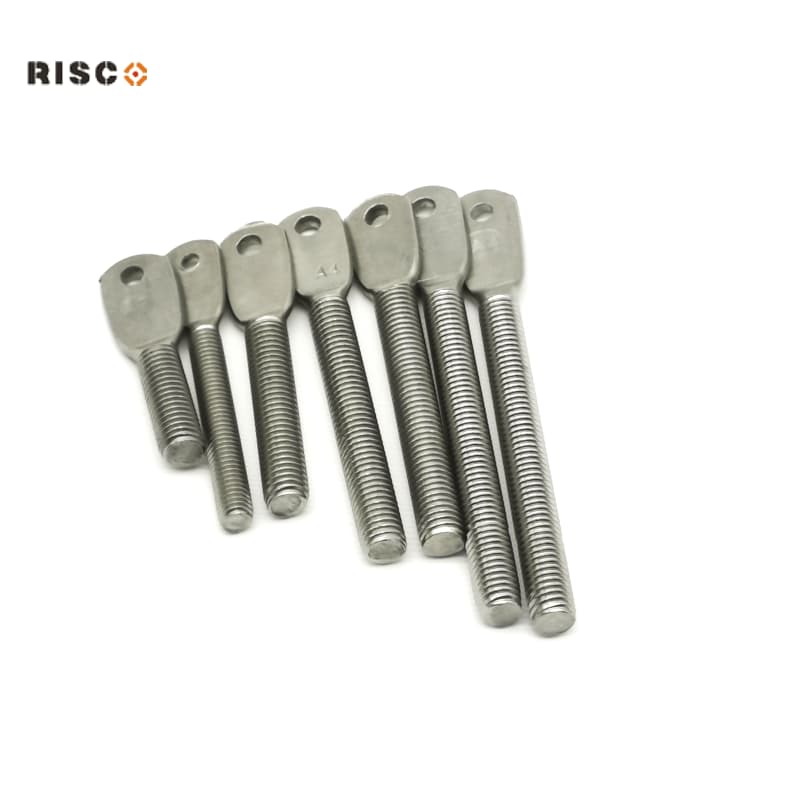

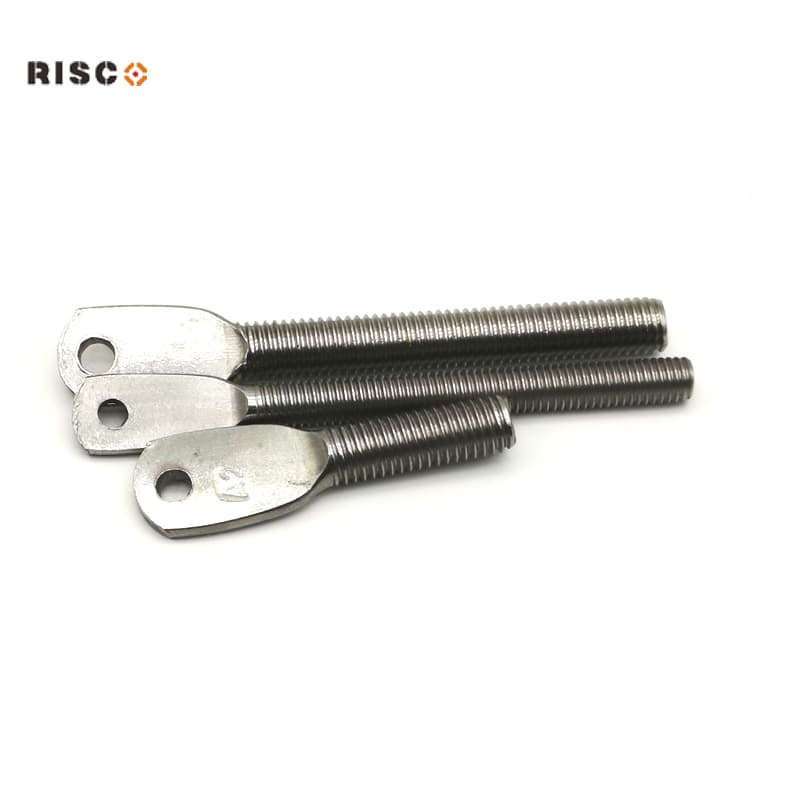

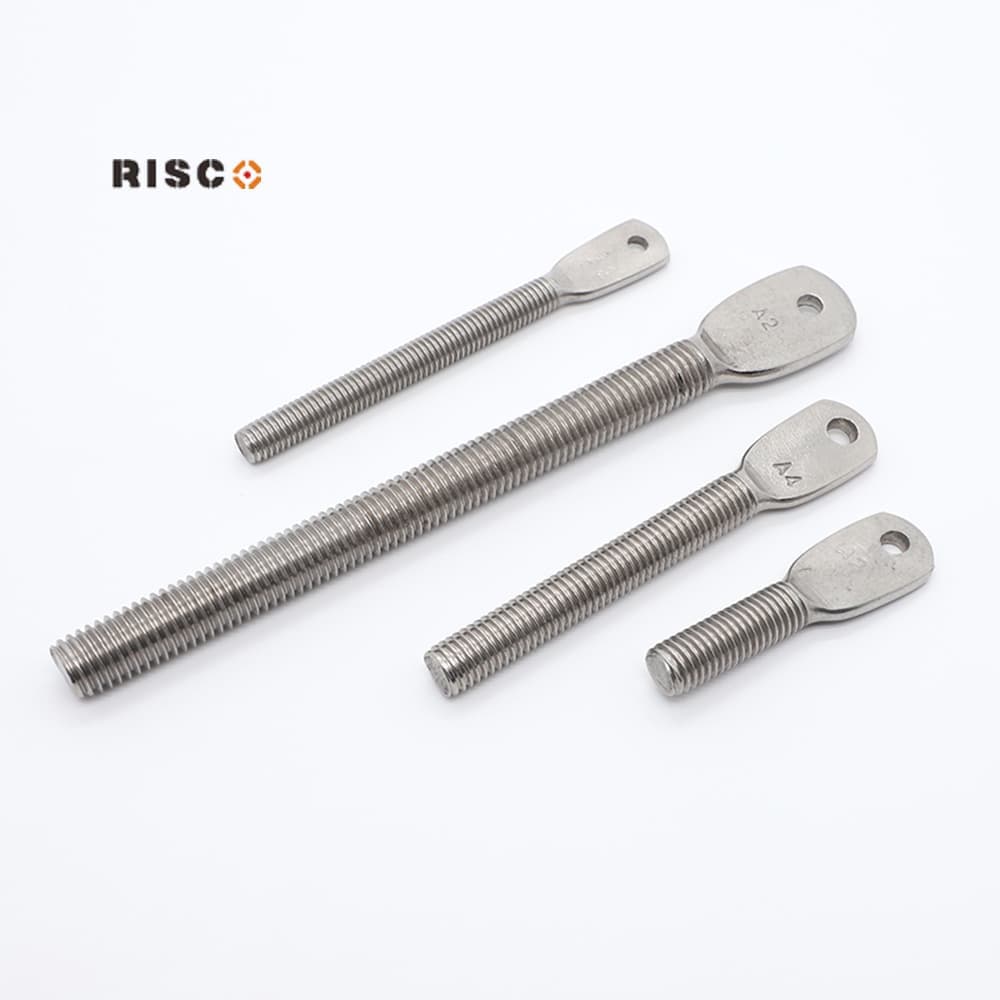

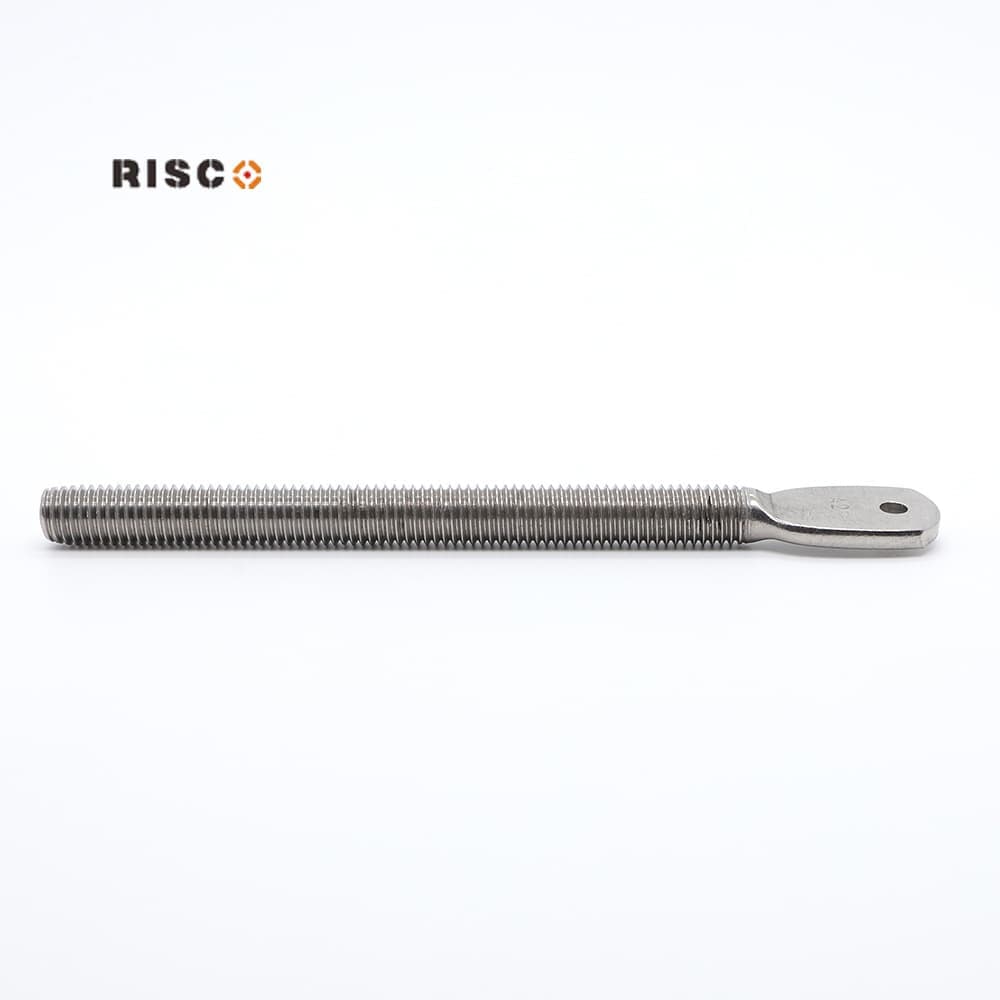

Flat head bolts, with full threads on the body, one end is ground flat and a round hole is drilled; the bottom one is even equipped with a T-shaped pin shaft. The pin shaft passes through the flat head hole for hinging connection. The flat head hole is used for hinging with the pin shaft, allowing for swinging; the threads are paired with nuts to tighten, adjust the length, and connect the rods.
Common applications:
Skylights, dry hanging of stone materials, railing cables, steel structure tension rods;
Equipment hinging, door and window tensioning, elevator accessories, outdoor anti-corrosion tensioning parts;
With the pin shaft, it allows for small-angle swinging, unlike ordinary bolts which can only be fixed rigidly.
Drawing:
Need customization
