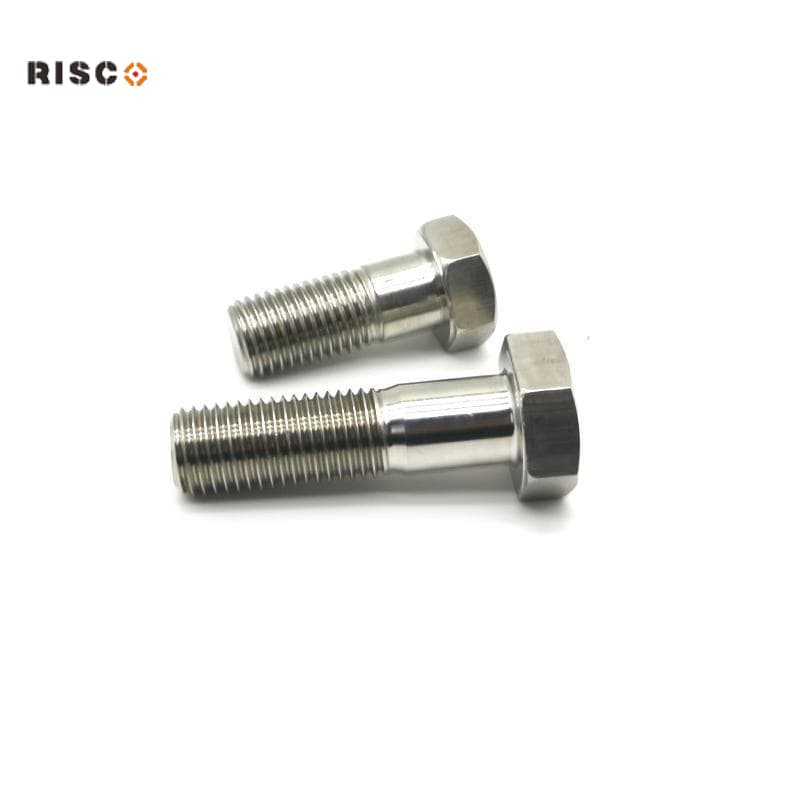

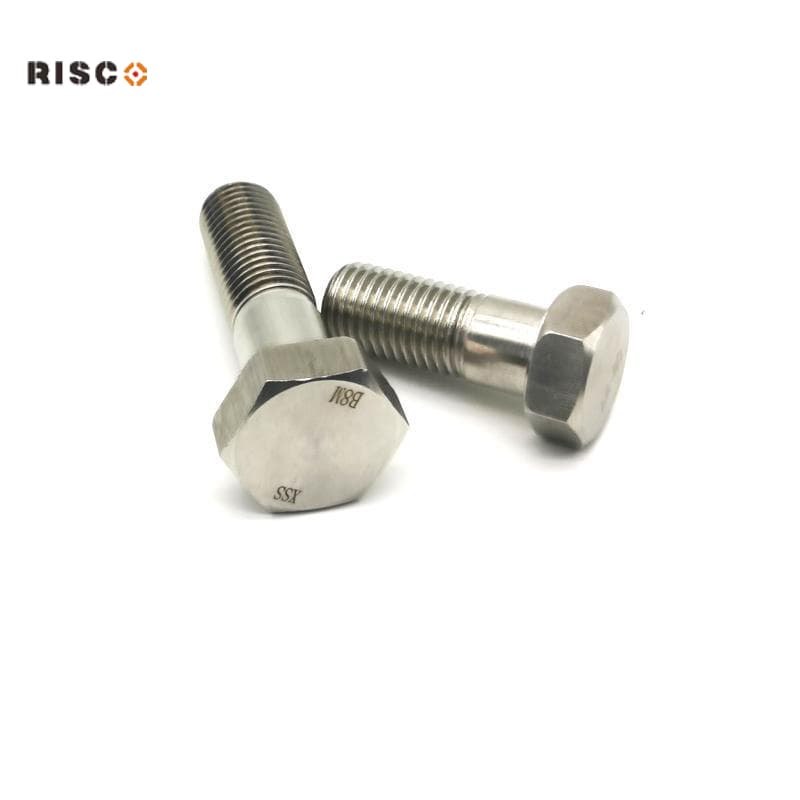

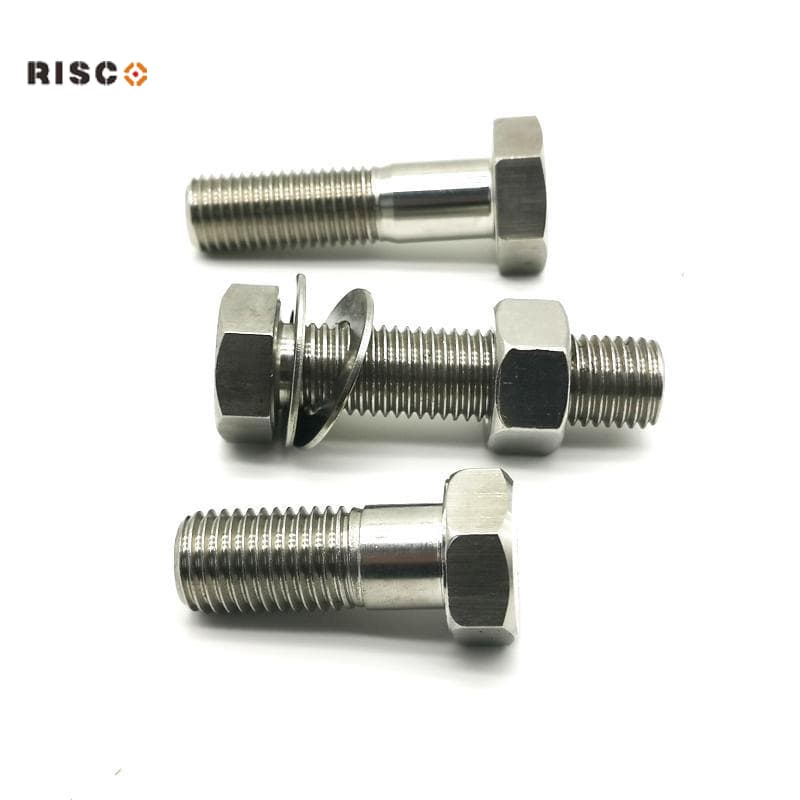

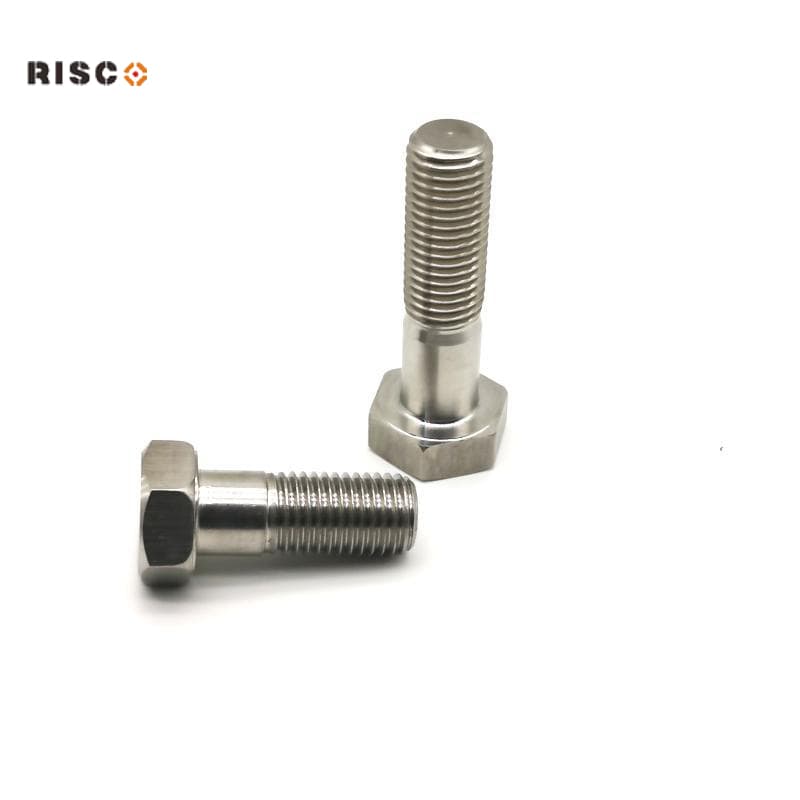

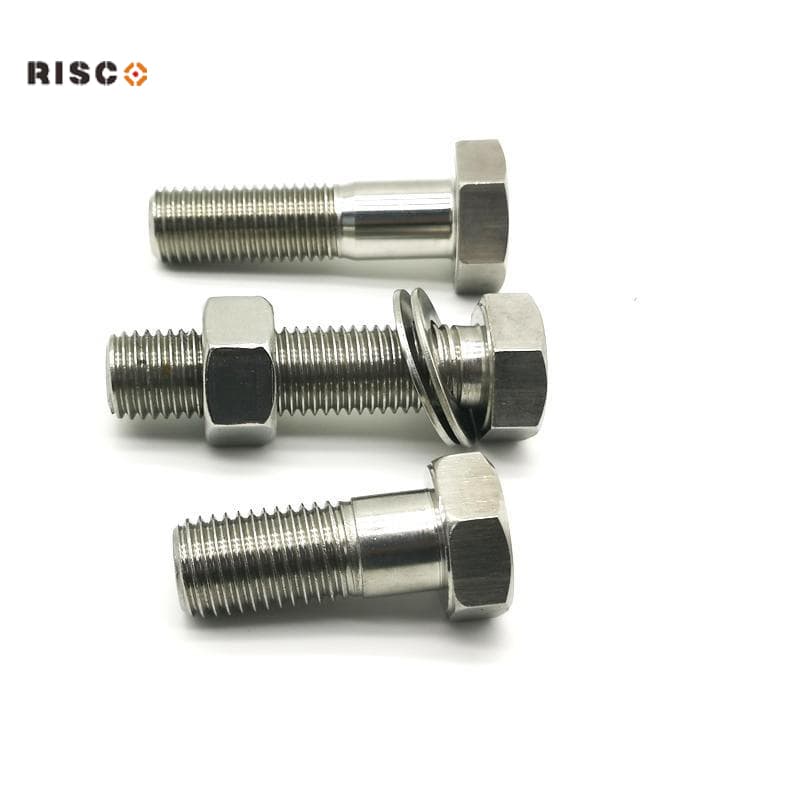

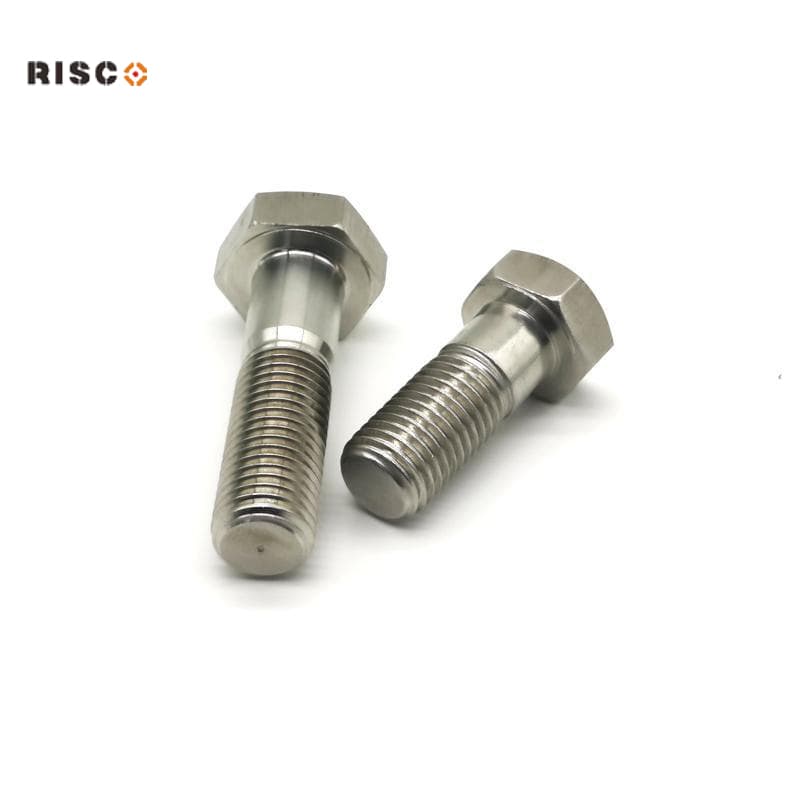

HEX HEAD BOLT
Name: Hex Head Bolt(Half Threaded)
Standard: ISO 4014/DIN 931/JIS B1189/GB 5782
Material: 304/316/304L/316L/904L/31803/32750/32760/C-276/Monel-400/660A....
Diameter: M1.6-M64 (Max M100)
Length: 3MM-1000MM
Description:
The hex bolt(Half Threaded) is a type of high-strength fastener with a threaded covering part and an external hexagonal head. It is widely used in mechanical equipment, steel structures, and high-load connection areas. The semi-thread design enables the unthreaded part to bear shear force, enhancing the shear resistance, while the threaded part provides reliable tension force, achieving stable fastening. The external hexagonal head makes it convenient to install with a wrench or torque tool, with easy operation and precise control of the preload force, ensuring uniform force on the connected components.

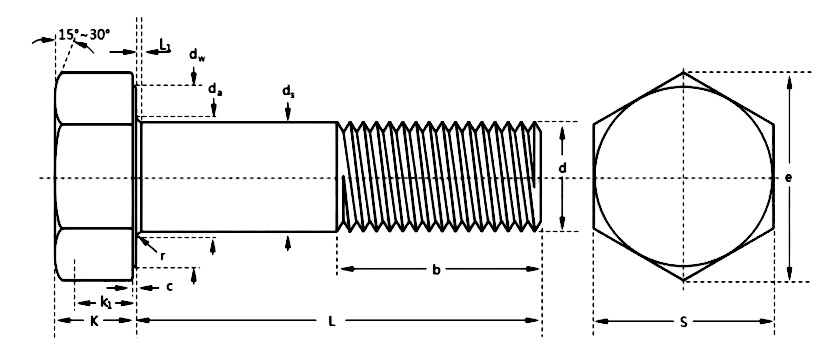

Drawing:
