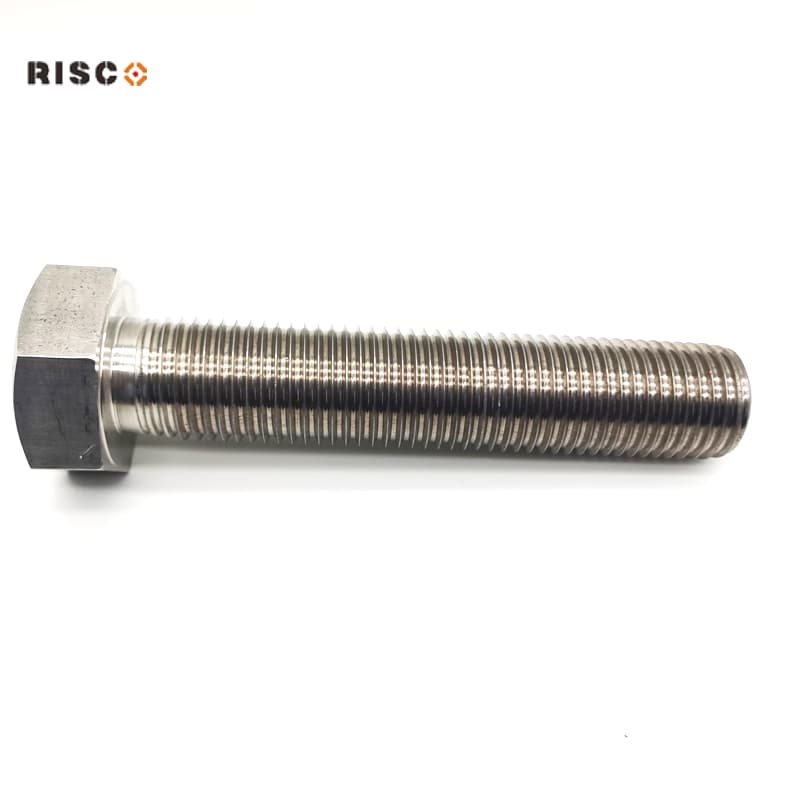

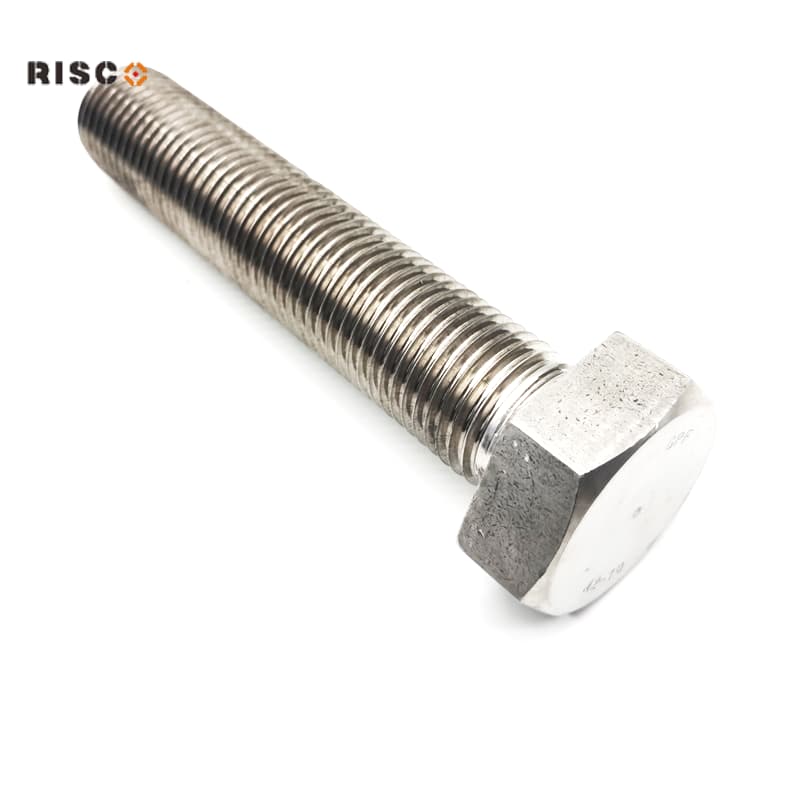

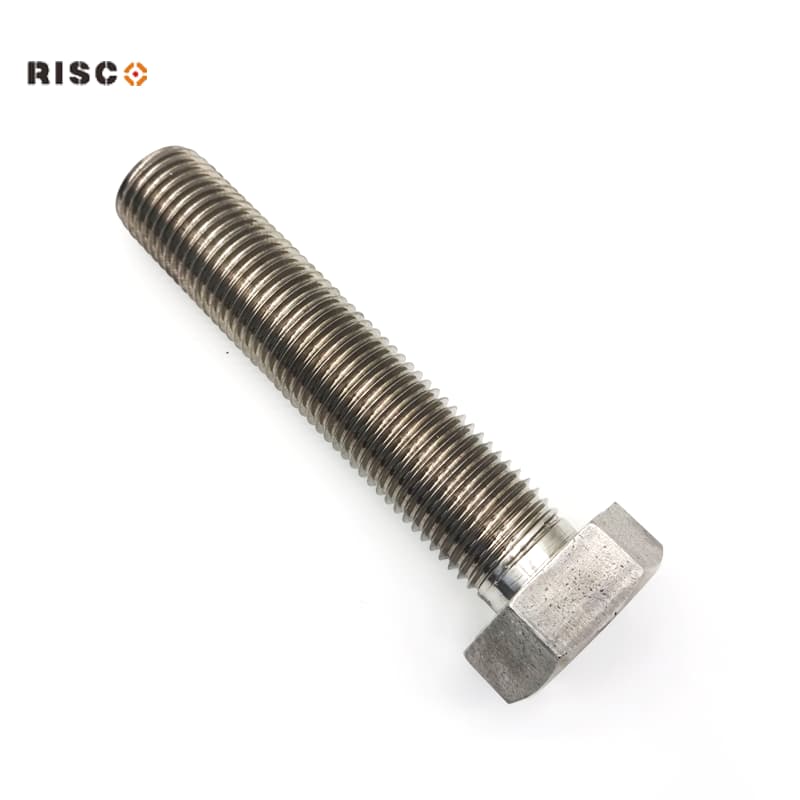

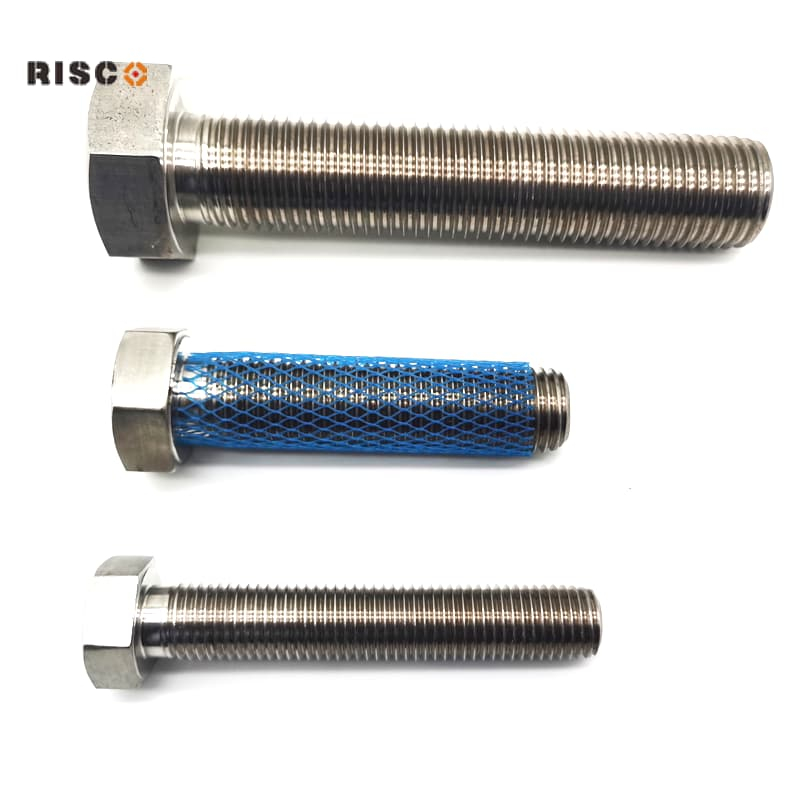

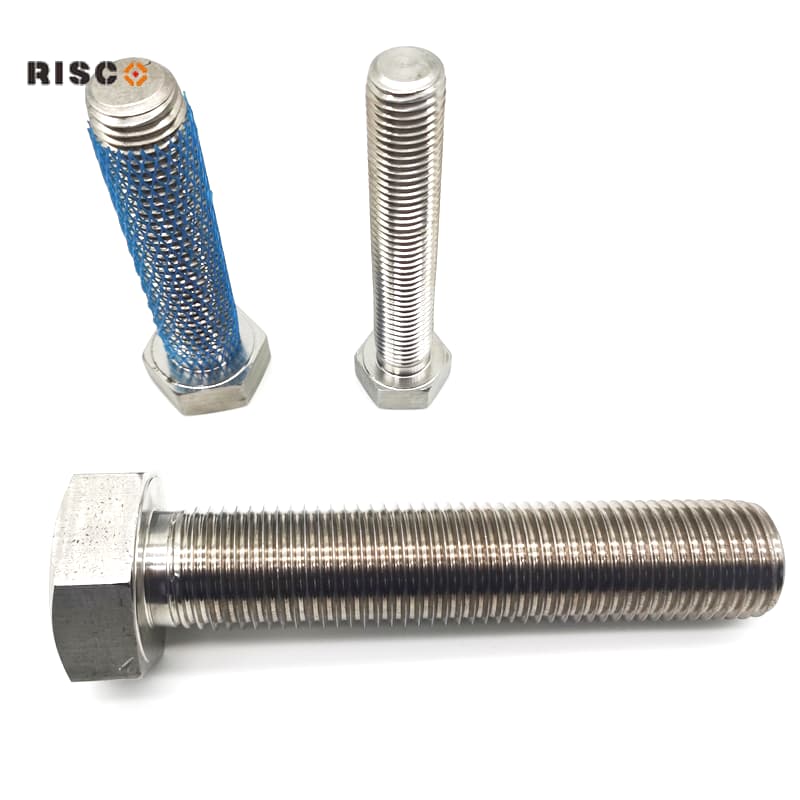

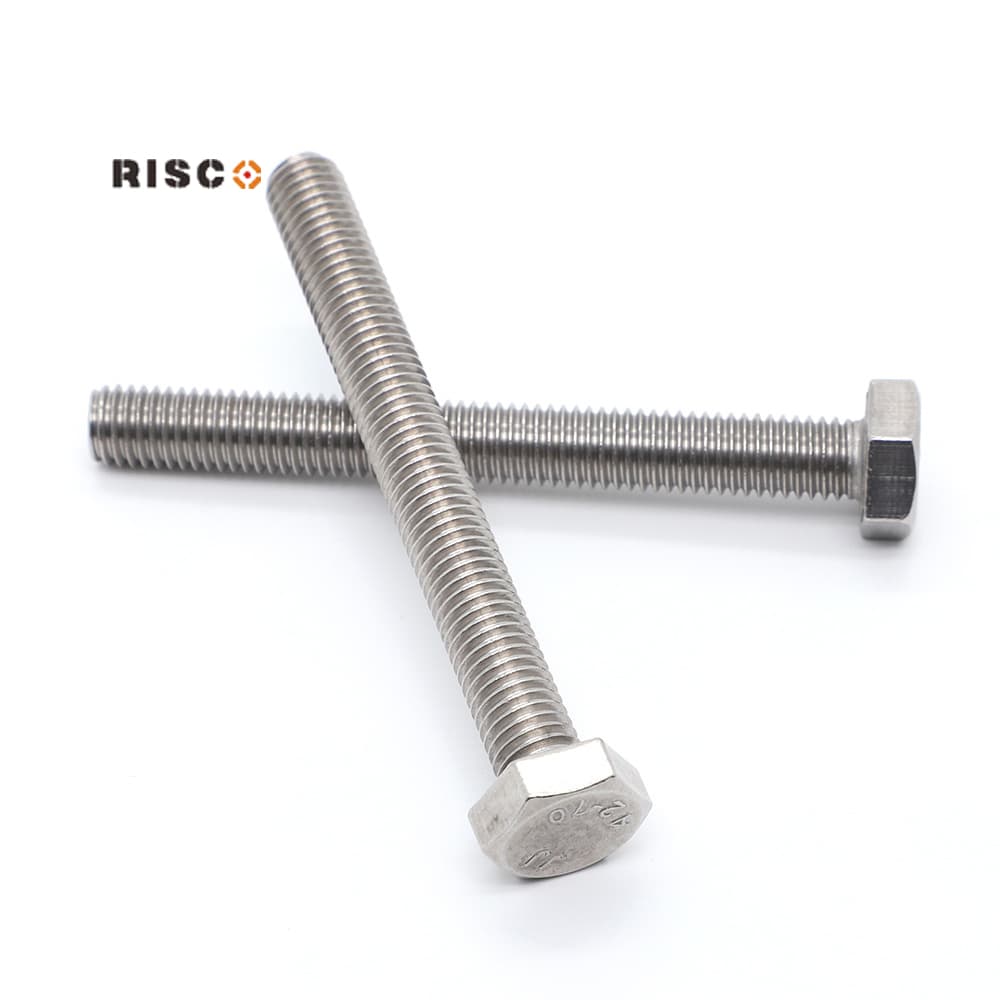

HEX HEAD BOLT:
Name: Hex Head Bolt(Full Threaded)
Standard: ISO 4017/DIN 933/JIS B1180/GB 5783/KS B1002
Material: 304/316/304L/316L/904L/31803/32750/32760/C-276/Monel-400/660A....
Diameter: M1.6-M64 (Max M100)
Length: 3MM-1000MM
Description:
Hexagonal bolts(Full Threaded) are common standard fasteners used in the industrial sector. The product features a full-thread structure, with an entire, continuous fine-threaded section on the rod body. It can be adapted to various thickness workpiece assembly scenarios, offering a wider adjustment range and ensuring reliable fastening. It is widely applied in various industries such as general machinery equipment, robots, medical equipment, construction machinery, cabinets, power transmission and transformation, electrical appliances, automation equipment, etc., and the product fully complies with RoHS and REACH environmental protection requirements.

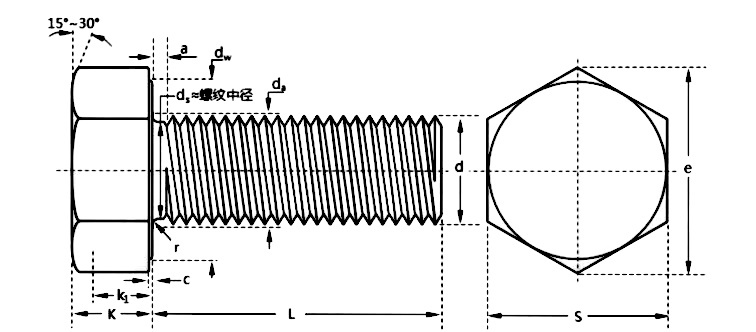

Drawing:
