HEX FLANGE BOLT:
Name: Hex Flange Bolt
Standard: ISO 6162/DIN 6921/JIS B1189/GB 5787
Material: 304/316/304L/316L/904L/31803/32750/32760/C-276/Monel-400/660A....
Diameter: M5-M64
Length: 12MM-1000MM
Description:
The flange bolt is a detachable fastener used for high-strength connections, which needs to be used in conjunction with a nut. It is mainly applied in fields such as automotive engines, heavy machinery, and instrumentation. Its structure consists of an integrally formed hexagonal head, a flange disc, and an external threaded rod. According to the shape of the head, it is divided into flat head and concave head types. The design of the flange disc can increase the contact area to enhance the anti-loosening performance. Some models are equipped with teeth or fine rods to adapt to vibration scenarios.

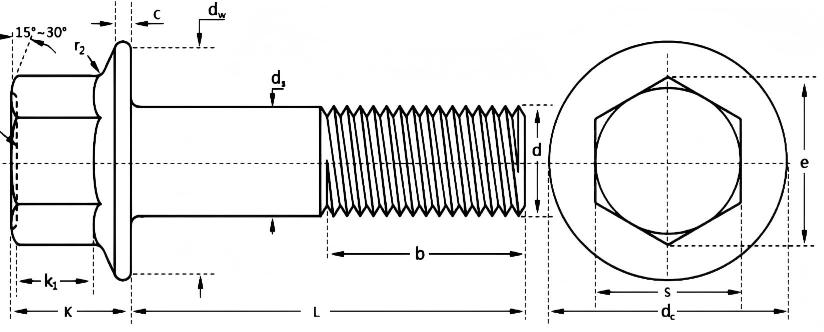

Drawing:
